DESCRIPTION

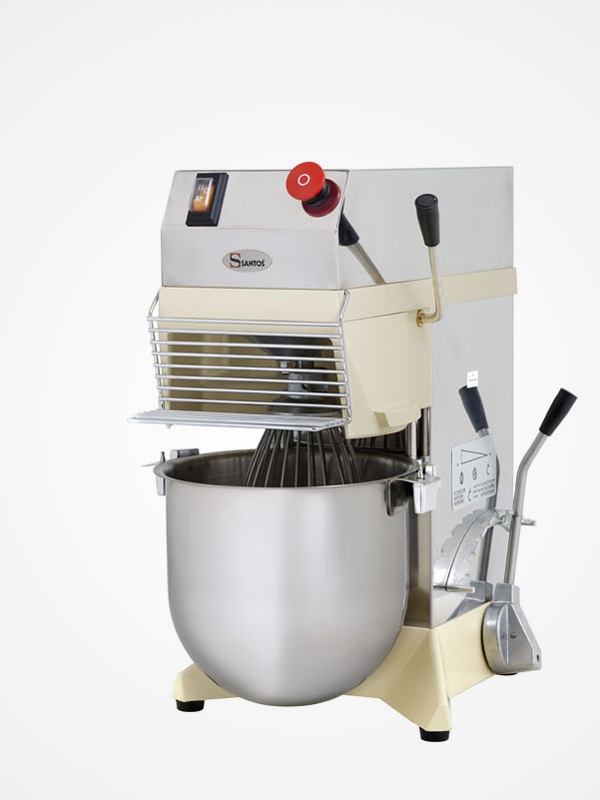

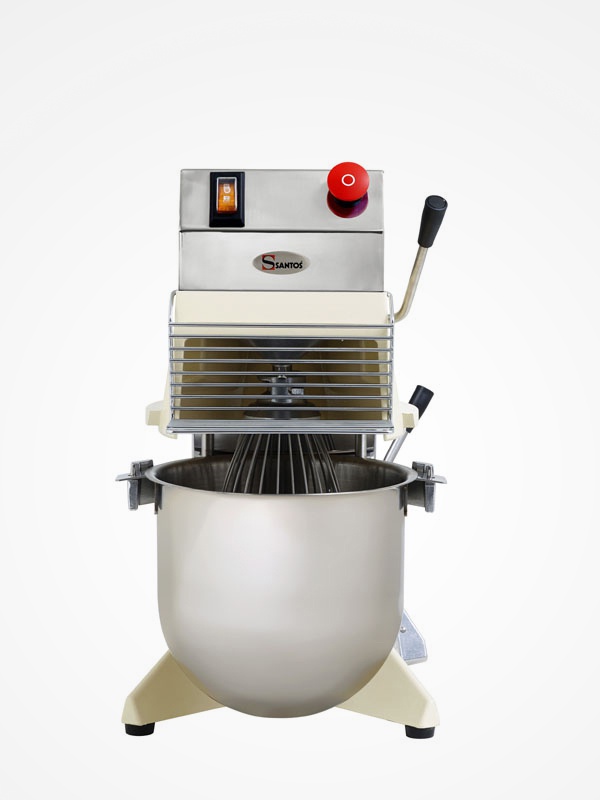

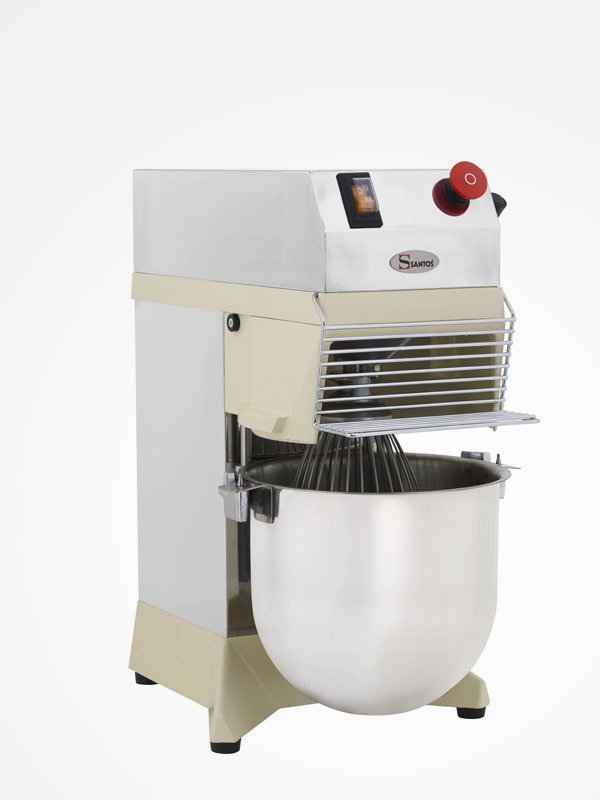

10 Liter Planetary Mixer 27

The 10 liter planetary mixer is the ideal appliance to mix, knead, beat, and whip all kinds of preparations.

Makes quickly any kind of dough (up to 5 kg of dough) thanks to its 8 speeds and 3 tools (dough hook, flat beater, wire whip).

  • Safety: it has a bowl locking system and the motor stops when the safety grid is opened.
  • Performance and sturdiness: the mixer is equipped with a powerful induction motor and it is all made from aluminium casting and stainless steel
  • Easy to clean: removable bowl and tool.

100% manufactured in France, since 1954

COLORS

technical description

Motor

Single phase

100 - 120 V - 50/60 Hz - 650 W

220 - 240 V - 50/60 Hz - 600 W

Three-phase

220 - 240 V - 50 Hz - 510 W

380 V - 50 Hz - 510 W

Motor speed

1500 rpm (50 Hz)

1800 rpm (60 Hz)

Weight

Net: 31 kg (68 lbs)

Packed: 34,1 kg (75 lbs)

Dimensions

Net

D: 530 mm (21")

W: 360 mm (14")

H: 580 mm (23")

Packed

D: 605 mm (24")

W: 390 mm (15")

H: 650 mm (25,5")









Normes

  • Versions 27 (220-240V - 50/60Hz) : CE, RoHS.
  • Versions 27V1 (100-120V - 50/60Hz) : CE, UL, RoHS.

media library

  • User manual
  • Sales leaflet

exploded views

  • From November 1994 to March 1997 - Serial Number From 164272 to 233899  1 2
    From March 1997 to May 1998 - Serial Number From 233900 to 275588  1 2
    From May 1998 to May 2000 - Serial Number From 275588 to 354090  1 2
    From May 2000 to February 2001 - Serial Number From 354091 to 383714  1 2
    From February 2001 to December 2017 - Serial Number From 383715 to 1040795  1 2
    From December 2017 to June 2021 - Serial Number From 1040796 to 1165454  1 2
    After June 2021 - Serial Number After 1165455 1 2
