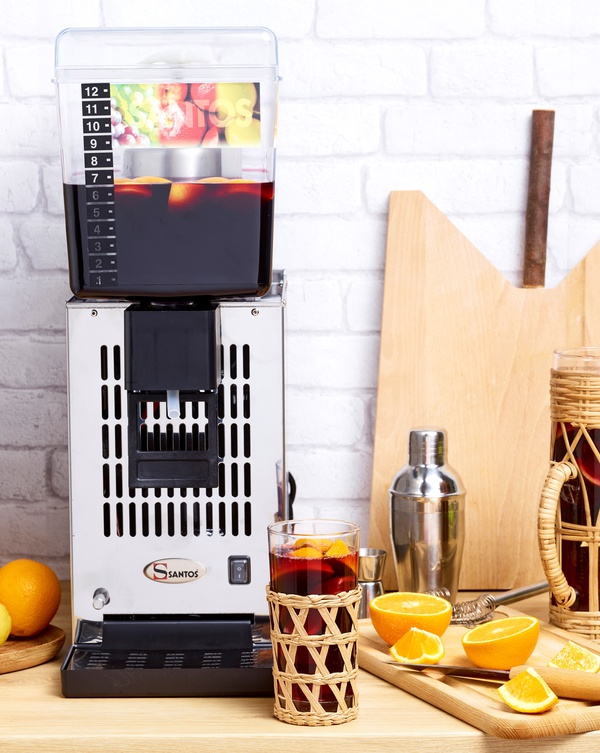

Cold Drink Dispenser 34

Cold Drink Dispenser 34

DESCRIPTION

The cold drink dispenser is the ideal appliance for dispensing all kind of cold beverages: fruit juices (with pulp or not), sangria, lemonades, water, iced tea, iced coffee...


Easy to use: just press the glass or the jug against the tap to get the drink.

Equipped with a stirring paddle to avoid foaming and oxidation of the beverages.

Reliable refrigeration system: Wide air-cooling condenser to continuously chill the drinks. High pressure hermetically sealed compressor giving the guarantee of a high quality, efficient and long-lasting applince. Compressor designed for tropical countries.

A large range of dispensers available:

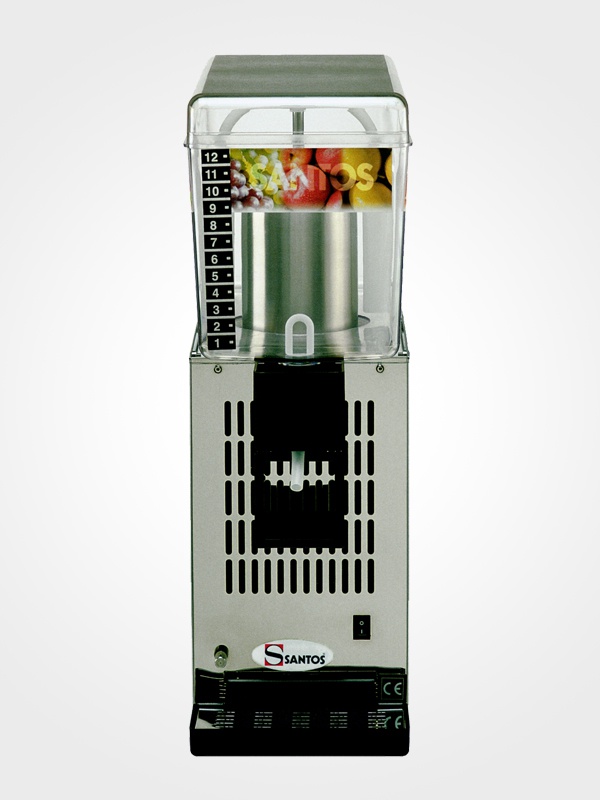

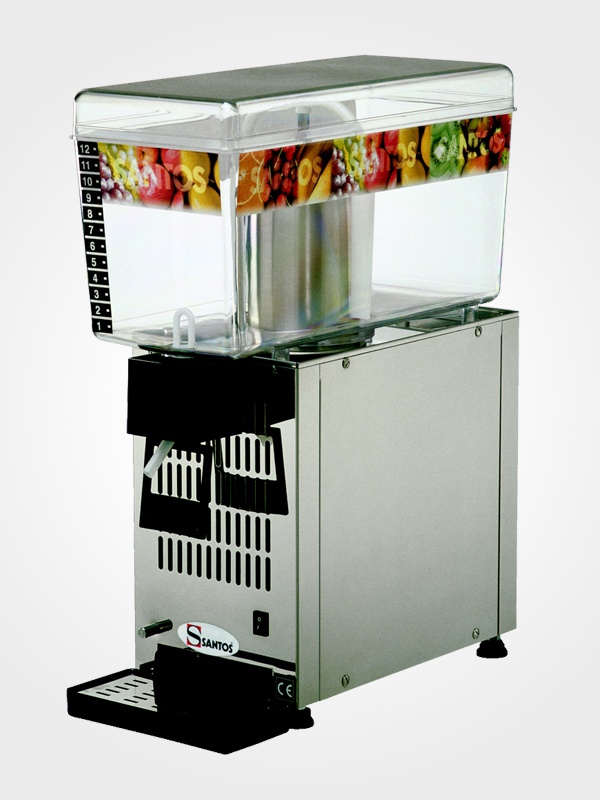

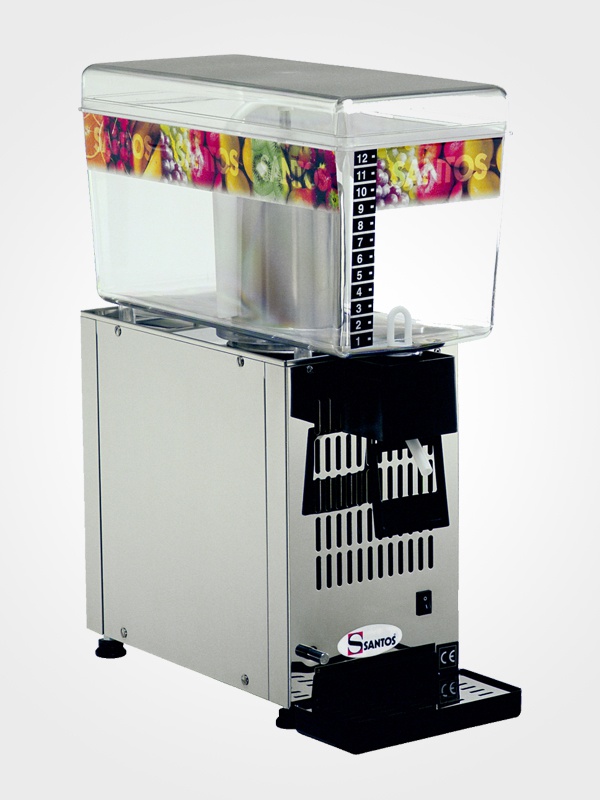

34-1 (single bowl)  - 12 liter capacity

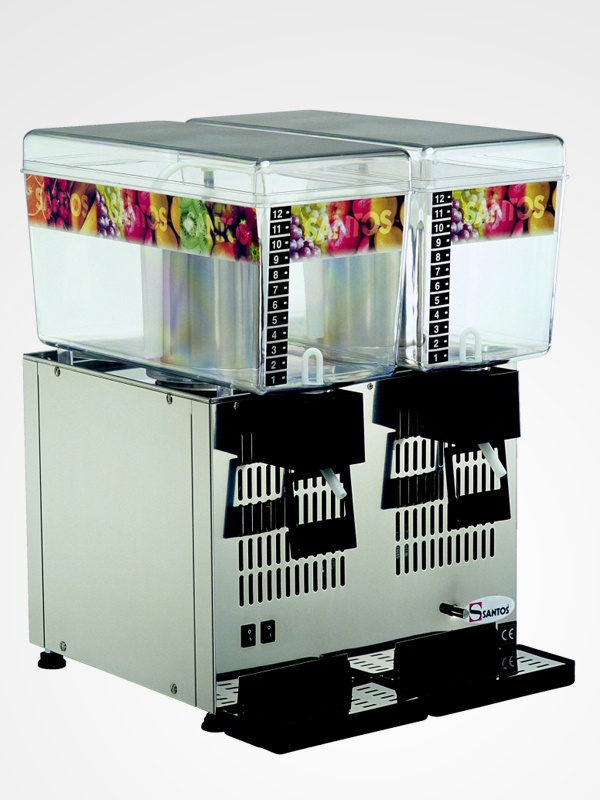

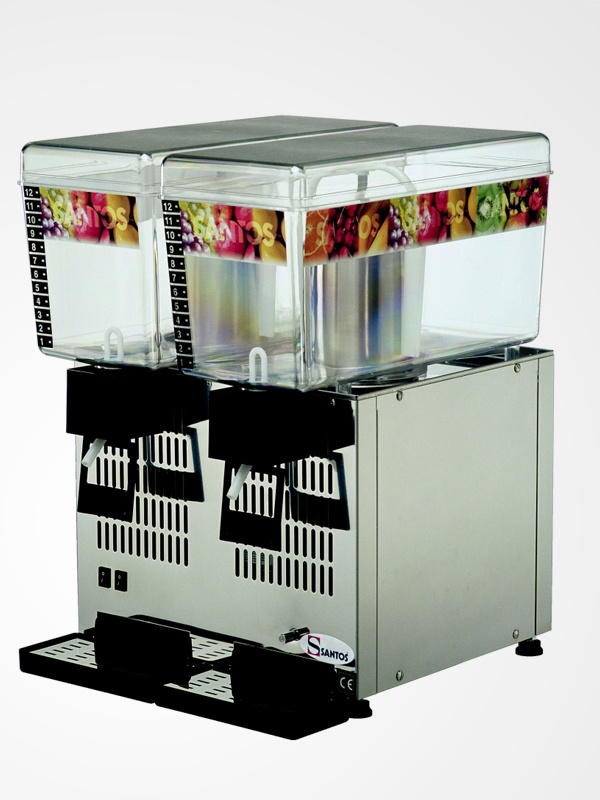

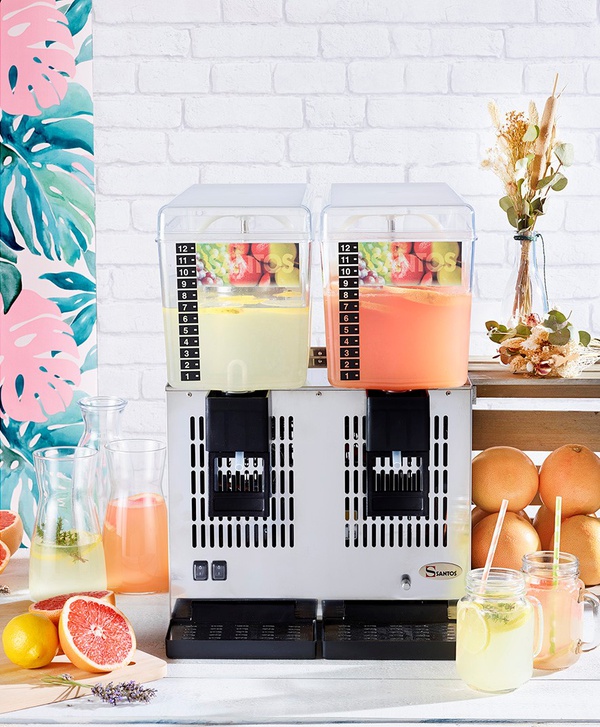

34-2 (twin bowl)  - 2x12 liter capacity

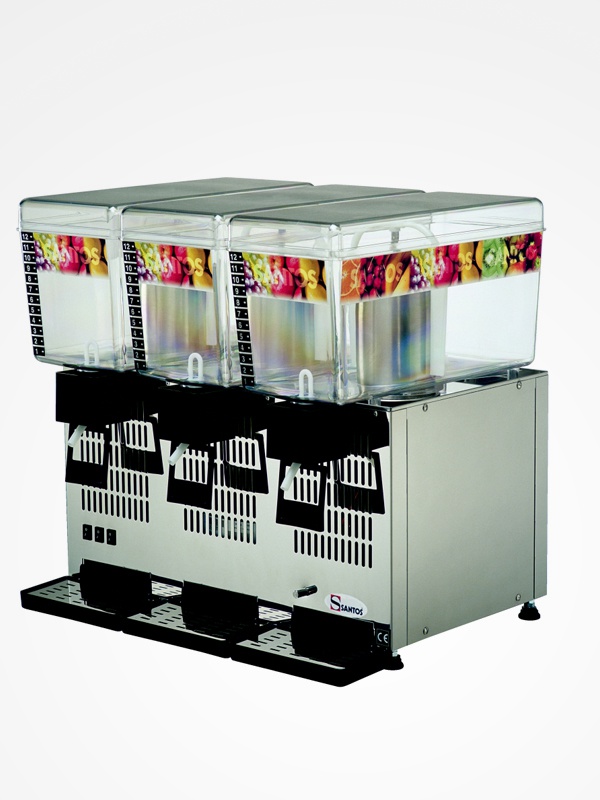

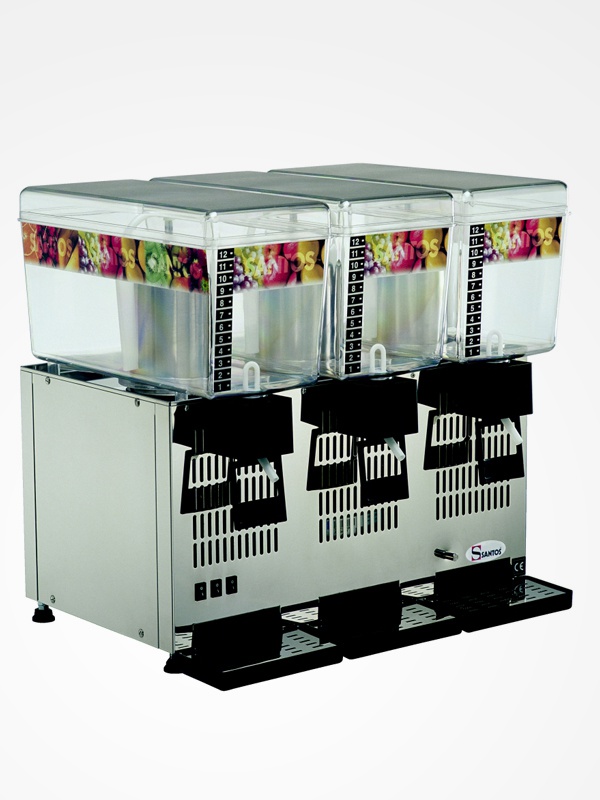

34-3 (triple bowl)  - 3x12 liter capacity

COLORS

technical description

Motor

Single phase

100 - 120 V - 50/60 Hz

220 - 240 V - 50/60 Hz







Weight

Net

1 Bowl: 15,6 kg (34 lbs)

2 Bowls: 23,5 kg (52 lbs)

3 Bowls: 30,5 kg (71 lbs)





Packed

1 Bowl: 17,1 kg (38 lbs)

2 Bowls: 25,4 kg (55 lbs)

3 Bowls: 34,3 kg (75 lbs)











Dimensions


Net

1 Bowl / 2 Bowls / 3 Bowls

D: 430 mm (17")/ 430 mm (17")/ 430 mm (17")

W: 190 mm (7,5")/ 380 mm (15")/ 570 mm (22,5")

H: 545 mm (21")/ 545 mm (21")/ 545 mm (21")


Packed

1 Bowl / 2 Bowls / 3 Bowls

D: 530 mm (21")/ 535 mm (21")/ 540 mm (21")

W: 270 mm (11")/ 460 mm (18")/ 650 mm (26")

H: 660 mm (26")/ 660 mm (26")/ 680 mm (27")


CE
RoHs

Normes

- Versions 34 : CE, RoHS.
